BUYING GUIDE · DOORWAY CLOSURE AND INSTALLATION

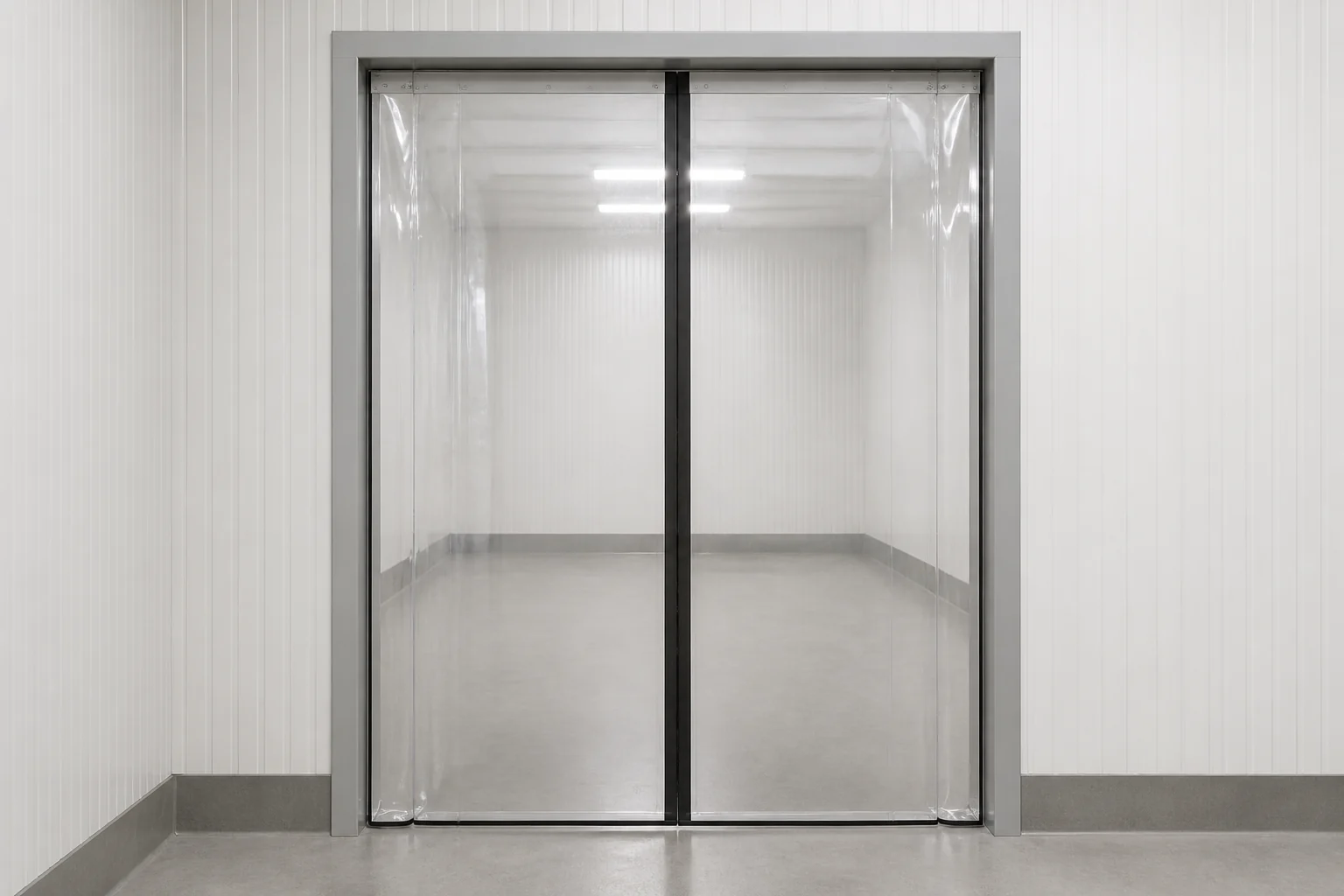

How to Compare Magnetic Clear PVC Door Curtains without Guessing from a Catalog Photo
A reliable comparison begins with the measured opening and passage cycle, then follows the complete panel, magnetic center edge, mounting system, representative trial, service route and supplier departures.
This guide helps importers and facility buyers distinguish architectures, read material and evidence scope, diagnose center-edge gaps, plan installation and preserve replacement data. It does not promise air sealing, energy savings, pest control, hygiene outcomes, safety-barrier performance or destination compliance.
01 · CAPTURE THE SITE

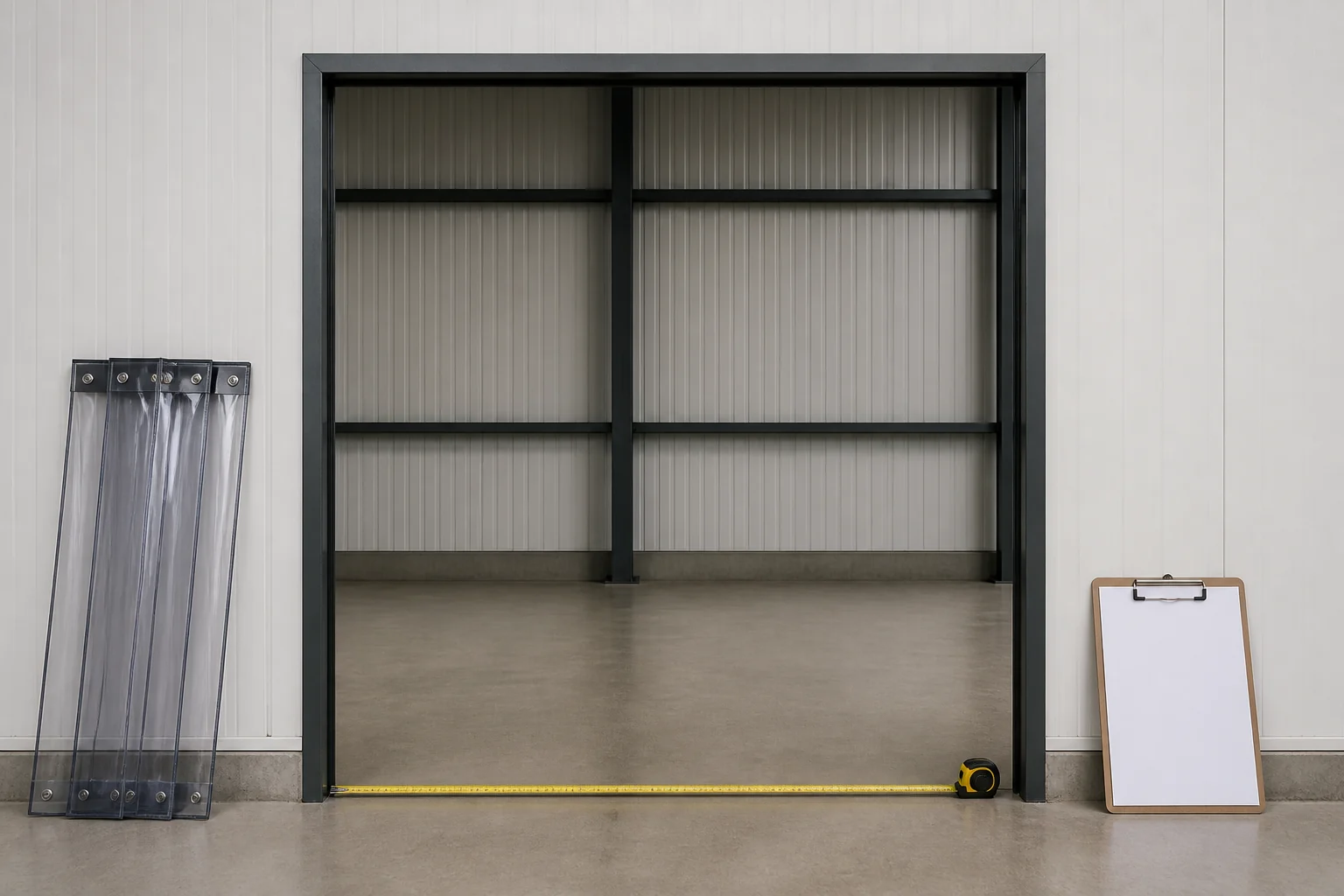

Measure the Opening as a Physical Interface
The frame, substrate, threshold and surrounding equipment determine whether the proposed kit can be installed and replaced as drawn.
01
Multi-point geometry
Measure width and height at more than one location, plus diagonals and frame depth. Identify skew, protrusions and the smallest usable opening instead of averaging problems away.
02
Mounting zone
Photograph and describe the intended top and side fixing surfaces. Record material, available edge distance, concealed services and restrictions on drilling or permanent anchors.
03
Floor and surroundings
Map drains, ramps, handles, sensors, conveyors, shelves and air outlets. Confirm the required bottom clearance and whether the curtain can move without striking adjacent equipment.
02 · CHOOSE THE SYSTEM

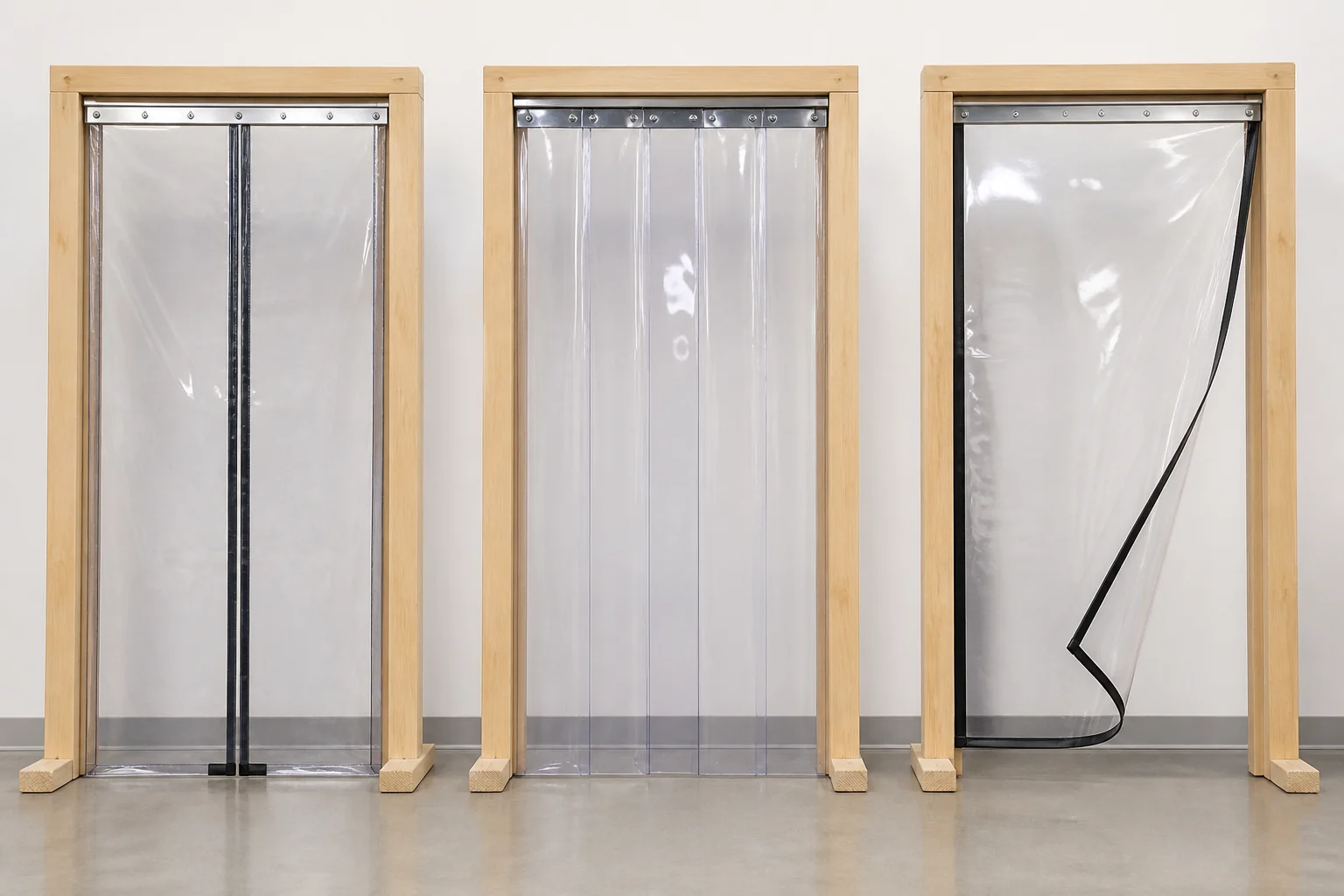

Compare Magnetic Panels, Overlapping Strips and Plain Sheets
These systems are not interchangeable. Use the complete opening, passage and service needs to decide which architecture deserves a sample.
01
Magnetic twin panels
Broad panels meet at a center edge and separate during passage. Review center position, panel sweep, edge alignment, bottom clearance and how the pair returns in the actual frame.
02
Overlapping strips
Narrow vertical strips create repeated overlaps and can be replaced individually. Compare strip width, overlap, traffic contact and mounting rather than assuming the same passage behavior.
03
Flexible sheet
A single sheet or side-opening panel may simplify one task while changing access and closure. Record why it fits the opening and what limitations the buyer accepts.
03 · IDENTIFY THE BUILD
Read Panel and Magnetic-Edge Evidence at the Right Scope
Material names and magnet descriptions are starting points. The buyer needs the exact build, represented object and applicable test conditions.
| Question | Record to inspect | Useful classification | Reason |
|---|---|---|---|
| What is offered? | Panel and edge component codes | Exact or unresolved | A category name cannot identify the kit. |
| What was examined? | Roll good, edge piece or full assembly | Applicable or informative | Interfaces change the represented object. |
| Under which conditions? | Method, setup, environment and date | Current, expired or missing | One result does not cover every doorway. |
| Which wording is planned? | Market phrase and destination owner | Approved or review required | Claims must remain within evidence scope. |
| What changed? | Departure and reorder notice | Accepted or rejected | Continuity depends on visible differences. |
01
Panel identity
Ask for material wording, supplier code, tint, thickness method and finish. Keep a coded physical reference and link documents to that exact panel construction.
02
Center-edge identity
Describe carrier material, profile, magnet format, orientation schedule and attachment. A magnet data sheet alone does not describe the assembled vertical closing edge.
03
Record applicability
Classify evidence by sample, condition, method, result, date and offered revision. Mark third-party background as informative when it does not represent the current kit.
04 · DIAGNOSE THE CENTER

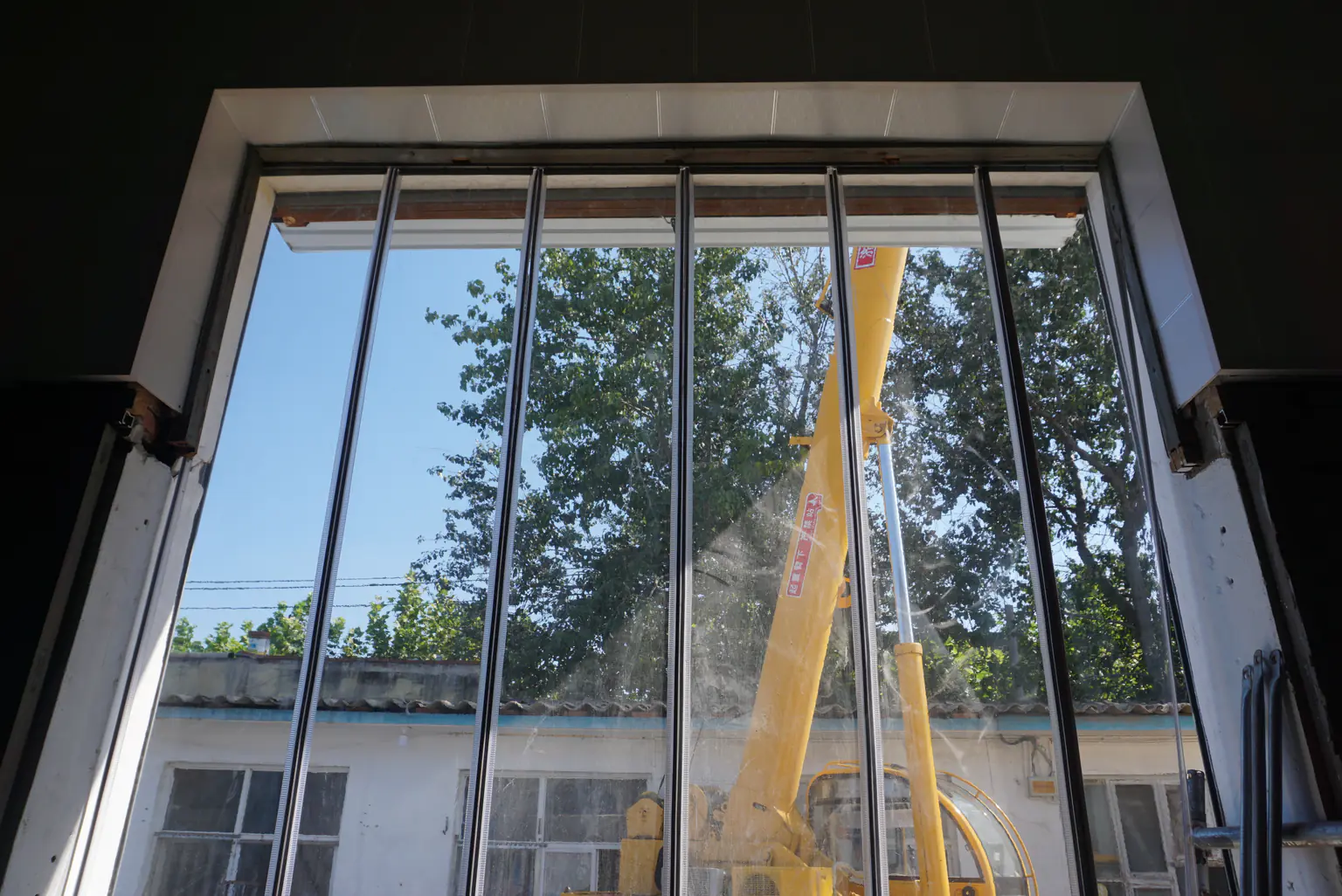

Treat a Closure Gap as a System Symptom
A visible gap may come from frame skew, unequal panels, edge orientation, attachment, floor contact or airflow. Diagnose before changing magnet strength.
01
Check the frame first
Compare installed top line, sides and diagonals to the released survey. A twisted or out-of-level frame can shift the center edge from top to bottom.
02
Check panel pairing
Verify left/right codes, finished dimensions, hanging position and magnetic orientation. Confirm that the two panels belong to the same approved pair and revision.
03
Observe the condition
Record temperature, side draft, passage history, packing recovery and floor contact at the time of observation. Keep setup facts with photographs of the complete doorway.
05 · TEST THE PASSAGE
Run a Representative Passage and Visibility Trial
The full curtain behaves differently from a loose material sample. Trial real users or equipment under a controlled site procedure.
01
Define the sequence
State approach direction, user or cart dimensions, load, speed policy and number of passes. Keep powered-equipment decisions under the buyer’s qualified safety control.
02
Observe interfaces
Record contact point, separation, panel sweep, side exposure, center-edge return and lower-edge behavior. Use the same frame and sample revision for comparisons.
03
Review sight lines
Assess visibility from both sides with actual lighting and representative traffic. Decide whether markings, signals or another traffic control are required independently of the curtain.
06 · INSTALL AND ACCEPT

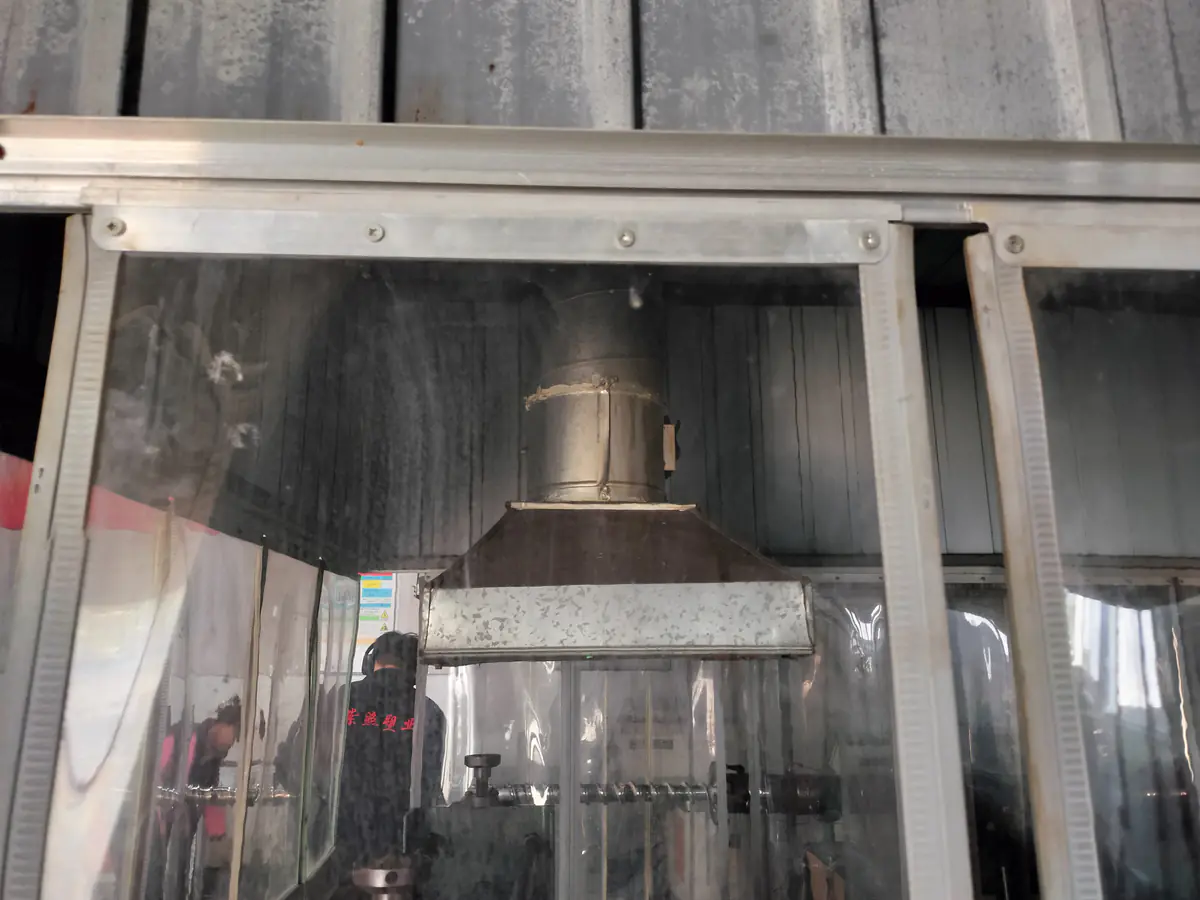

Separate Factory Parts from Site Installation Decisions
Hardware supply does not transfer responsibility for the real substrate. Define who surveys, selects anchors, installs and records acceptance.
01
Drawing and parts
Issue the final elevation, hole pattern, panel codes, rail or plate sections, side parts, supplied fasteners and excluded site anchors under one revision.
02
Installation sequence
Document positioning, drilling, panel attachment, alignment and functional checks. Record approved field adjustments rather than leaving them in informal messages.
03
Acceptance record
Verify complete dimensions, bottom clearance, center alignment, passage observations, parts count and visible condition. Keep the installed revision for future replacements.
07 · MAINTAIN THE SYSTEM

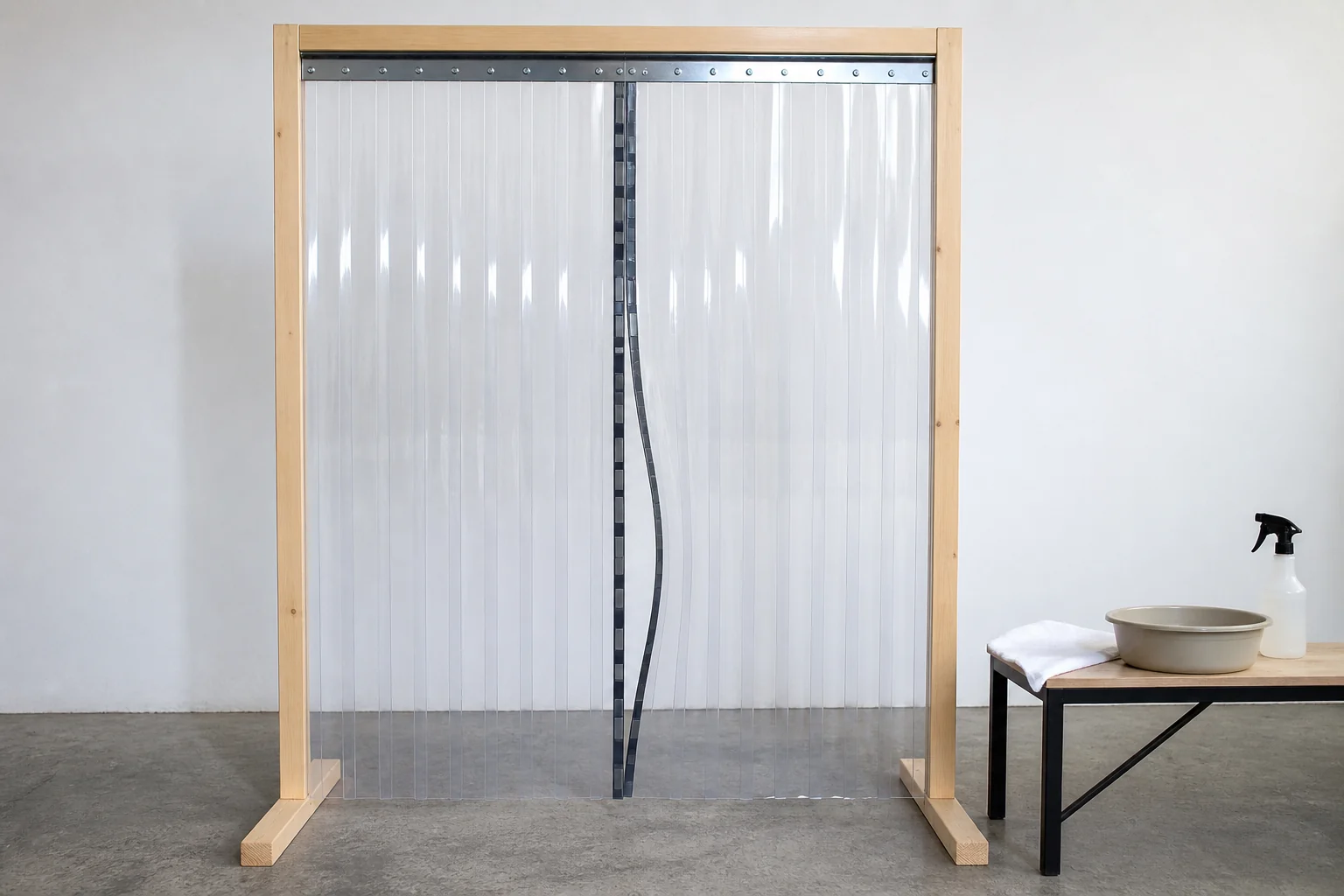

Validate Cleaning and Keep Replacement Data by Component
Clear panels, edge carriers, magnets and rails require different observations. A service file should preserve both condition and identity.
01
Cleaning procedure
Specify cleaner, dilution, temperature, tool, rinse and drying. Check compatibility on the exact panel and edge carrier before issuing a site instruction.
02
Inspection route
Look for tears, sharp damage, loose fixings, magnet displacement, alignment loss, floor drag and optical change. Define removal-from-service authority.
03
Replacement file
Retain left/right panel codes, drawings, material reference, edge schedule, installed photos and hardware record. Replacements should match the installed revision, not a broad category name.
08 · NORMALIZE OFFERS
Compare the Same Opening, Kit Scope and Decision Evidence
A quotation can look lower because it omits hardware, installation, testing, spare panels or destination packing. Normalize the complete delivered object.
| Review area | Ambiguity to expose | Comparison action |
|---|---|---|
| Architecture | Different panel systems under similar names | Compare complete front elevations |
| Opening | Quotes based on nominal dimensions | Use one dated multi-point survey |
| Closure | Component claims without assembled trial | Inspect the paired full-height edge |
| Installation | Anchors and site work omitted | Allocate every responsibility |
| Continuity | Replacements lacking installed identity | Require codes and change notice |
Start with the decision the buyer must defend
Trace it to the measured opening, offered kit, represented specimen, trial condition and responsible acceptance owner.
Label background information accurately
General magnetic or PVC literature may guide questions while the current doorway remains unverified.
01
Supplier departure list
Require every offer to identify differences in panel, magnetic edge, dimensions, hardware, trials, documents and packing. Resolve open fields before ranking totals.
02
Included responsibilities
Separate survey, drawing, anchors, installation, commissioning, samples, evidence, spares and training. Assign each responsibility to a named party.
03

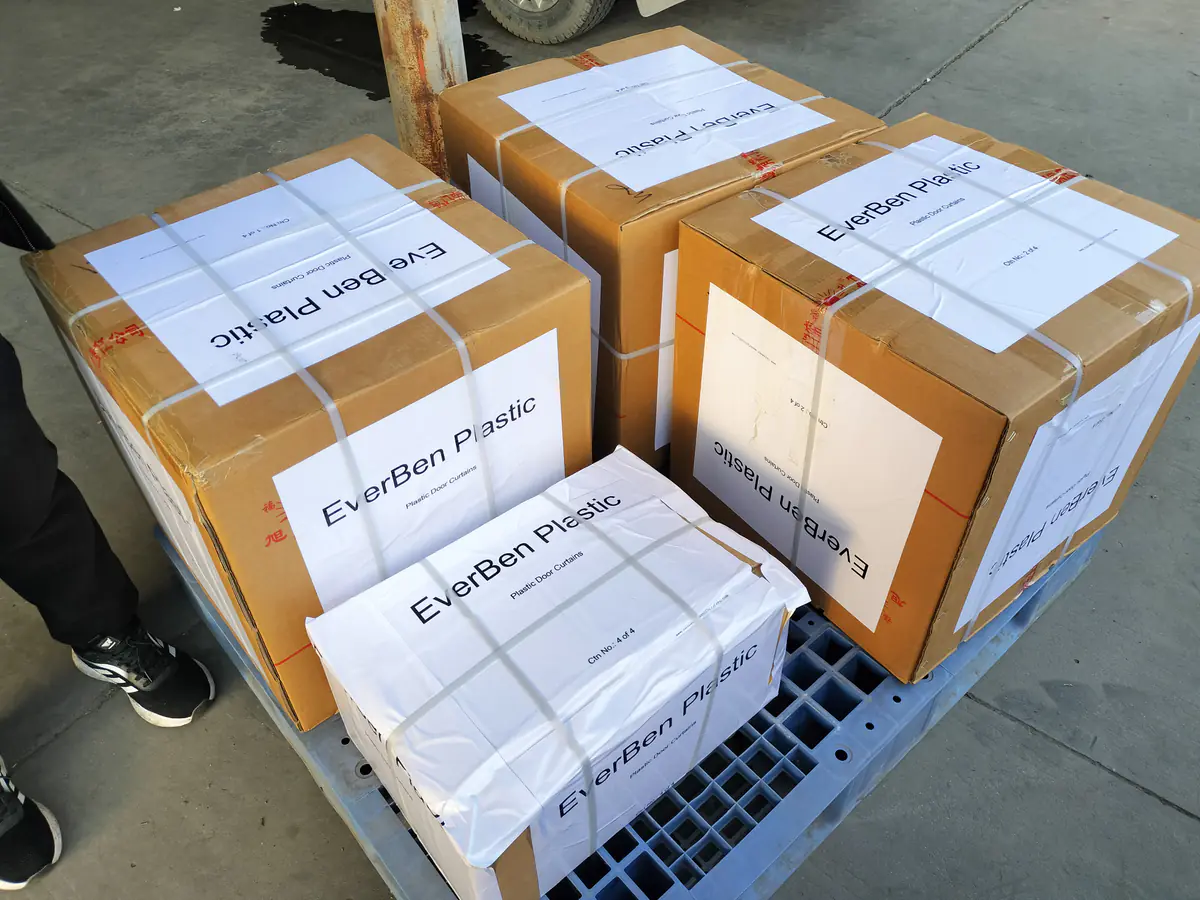

Continuity and reorder
Require change notice for material, magnet, carrier, rail, source or packing. Compare future supply to the retained kit and installed revision.
Evidence boundary for this page
This educational guide does not certify a product or supplier and does not replace the buyer’s workplace risk assessment. ISO and branded examples provide terminology and scope questions only; they do not establish an EverBen product result.
Buyer FAQ
Questions for doorway, installation and supplier comparison
Why can a magnetic center gap appear?
Possible causes include frame skew, unequal panels, incorrect orientation, attachment position, floor contact, side draft, packing condition or damage. Diagnose the complete system.
Is stronger magnet always better?
No. Passage force, carrier flexibility, user interaction and the complete installed geometry must be considered. Compare a controlled sample rather than one component value.
What should a site survey include?
Use multi-point width and height, diagonals, depth, substrate, threshold, fixing zones, nearby equipment, traffic and environmental information.
How can buyers compare different curtain architectures?
Use the same opening and passage protocol, then compare coverage, interfaces, mounting, movement, service and replacement—not marketing labels.
Can a product photo prove air sealing?
No. A photograph shows appearance and geometry only. Building performance requires project-specific conditions, measurement and responsible approval.
What must be retained for replacements?
Keep installed drawings, left/right panel codes, material reference, edge schedule, hardware, photographs, service record and approved departures.
Controlled next step
Turn the Guide into a Doorway-Specific Supplier Comparison
Prepare the survey, architecture decision, evidence index, gap checklist, traffic trial, installation ownership and service file. Then send the unresolved items for focused review.
